IEI ACE-704AM-RS 45W AC-DC Open Frame Medical AT Power Supply, Medical Power Supply
Images shown for reference only
IEI ACE-704AM-RS 45W AC-DC Open Frame Medical AT Power Supply, Medical Power Supply Medical Power Supply

Shipping Extra
ATACOM Part #: IPMP_IEIX_04_53
   Price: $80.00


Brand iei
Input Voltage: 90 ~ 264 VAC Full Range
Frequency: 47 Hz~ 63 Hz
Input Current:
2 A(RMS)@115V
1 A(RMS)@230V
Inrush Current:
30 A Max for 115VAC
60 A Max for 230VAC
Output
Voltage   Min. load  Max. load Ripple & Noise
-15V 0A 4A 1%
+12V 0A 3A 1%
-12V 0A 0.3A 1%
Overvoltage : protection latch off
Short Circuit: protection auto recovery
General Specifications Watt: 39~60 W
Hold-up: time 14 ms Min.
Efficiency: 80 %
MTBF: 100,000 hours
Temperature Operation: 0 ˚C ~ 70˚C
Storage: -40 ˚C ~ 85˚C
Dimensions: 50.8 X 101.6 X 30.4 (mm)

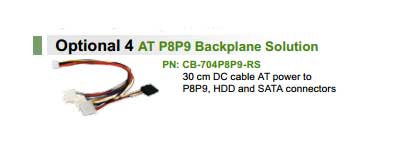

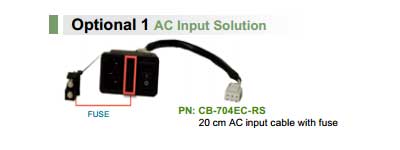

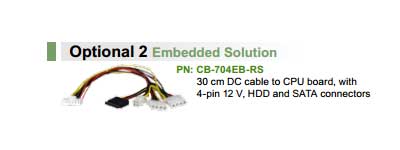

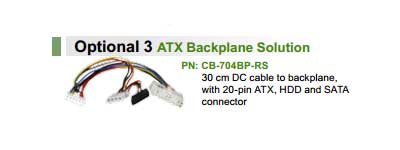

Outline Conntector: Optional Cable

1. Only 1.2 inch height
2. 4.7 Watt per cubic inch
3. Meets ITE and medical safety standards
4. High efficiency 80%
5. Operation from 0˚C to 70˚C by convection
6. Single side PCB for low assembly cost
